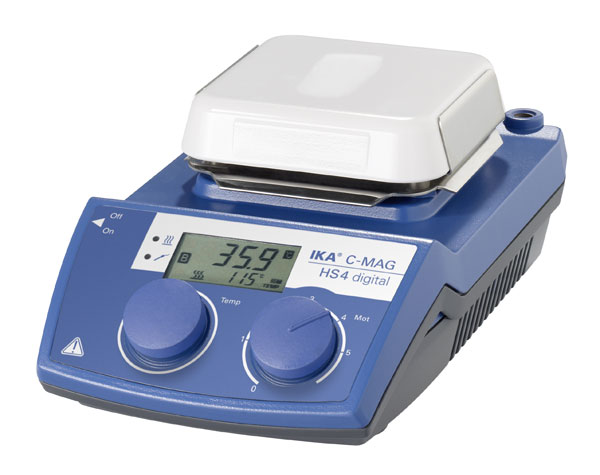

New magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 5 l (H2O)
- Simultaneous digital display of target and actual temperatures via LCD dispaly
- Directly connection for a PT 1000 temperature sensor enable a precise temperature control (included in delivery)
- Control accuracy in medium +/- 0,5 K (in combination with PT 1000)
- Display of actual temperature value in medium with 0,1 K resolution when using PT 1000 temperature sensor
- 3 operating modes to choose (standard, safe, adjustment protection)
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!
- Digital error code display
- Elevated control panel for protection against leaking liquids
| 攪拌點位數目 |
1 |
| 每個攪拌點位最大攪拌量 (H2O) |
5 l |
| 最大攪拌量 (H2O) |
5 l |
| 電機輸入功率 |
15 W |
| 電機輸出功率 |
1.5 W |
| 轉速顯示 |
刻度 |
| 速度范圍 |
100 - 1500 rpm |
| 攪拌子最大長度 |
30 mm |
| 加熱輸出功率 |
250 W |
| 加熱速度 1升H2O in H 15) |
2.5 K/min |
| 加熱溫度范圍 |
50 - 500 °C |
| 加熱溫度控制 |
無級 |
| 加熱溫度控制精確度 |
1 ±K |
| 轉速控制 |
刻度 0 - 6 |
| 固定安全溫度回路 |
550 °C |
| 外接溫度傳感器接口 |
PT1000 |
| 帶傳感器控溫精確度 |
0.5 ±K |
| 介質溫度穩定性 |
0.5 ±K |
| 溫度測量精確性 |
PT1000溫度偏差±0.2(DIN IEC 751 Class A) K |
| 溫度測量精度 |
0.1 K |
| 工作盤材質 |
陶瓷 |
| 工作盤外形尺寸 |
100 x 100 mm |
| 外形尺寸 |
150 x 105 x 260 mm |
| 重量 |
3 kg |
| 允許環境溫度 |
5 - 40 °C |
| 允許相對濕度 |
80 % |
| DIN EN 60529 保護方式 |
IP 21 |
| 電壓 |
230 / 120 / 100 V |
| 頻率 |
50/60 Hz |
| 儀器輸入功率 |
270 W |
